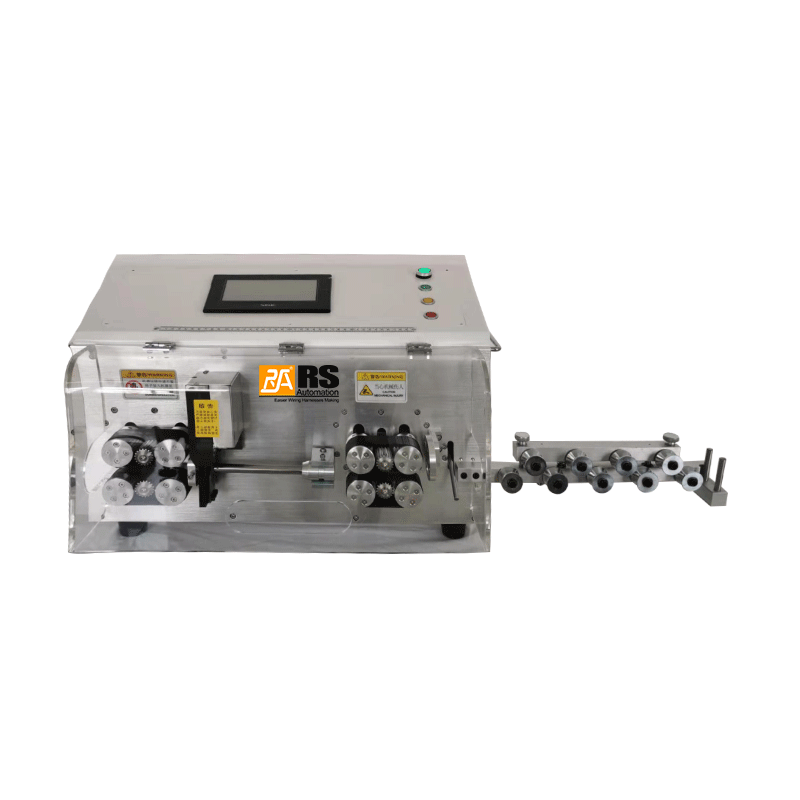

Wire Cutting & Stripping Machine (Electrical) RSM-WCS-1590

Description

Feature

Adopt 12 wheel drive, with strong power and high precision which ensured no damage to the wire surface
The feeding wheel and releasing wheel can be directly set, saving time and labor
The feeding wheel with automatic lifting function which increased the strip length
Adopt HMI operation interface, the parameters are visualized and easy to understand
With three-layer stripping program, it can be stripped into three layers, the productivity is 2 -3 times than the original machine.
200 group programs can be stored, different parameters can be stored, easy operation
Separate jigs, slitting jigs, ink-jet machines can be added

Specification

Model	RSM-WCS-1590
Display Way	7 Inch HMI
Applicable Wire	BVR2.5mm²-90mm²(BV35mm^2,sheath cable O.D.18 mm)

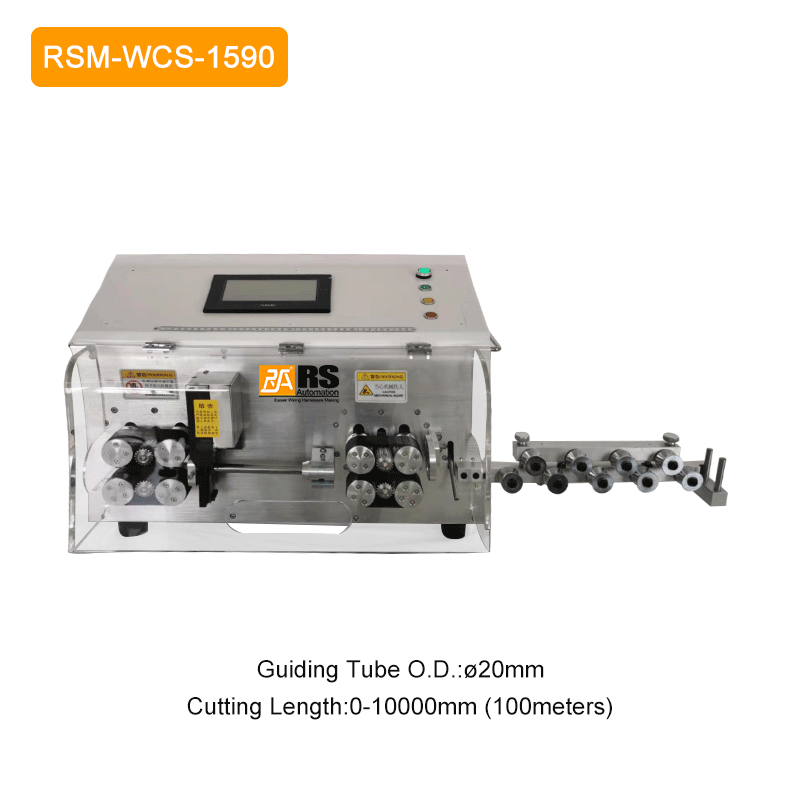

Guiding Tube O.D.	Φ20mm
Stripping Length	Front end 0-300mm (Beyond 500mm, added splitting jigs can be unlimtied spil) Rear end 0-150mm
Cutting Length	0-100000mm (100meters)
Min. Residual Length	50mm
Cutting Tolerance	±0.002mm*L（L=cutting length）
Memory Function	Max. 200 groups
Driven Way	12 wheels
Blade Material	Imported high speed steel
Voltage	220V/50HZ
Power	800W
Weight	110Kg
Productivity	600-1000pcs/h (Depending on the wire)
Dimension	L700mmW640mmH480mm
