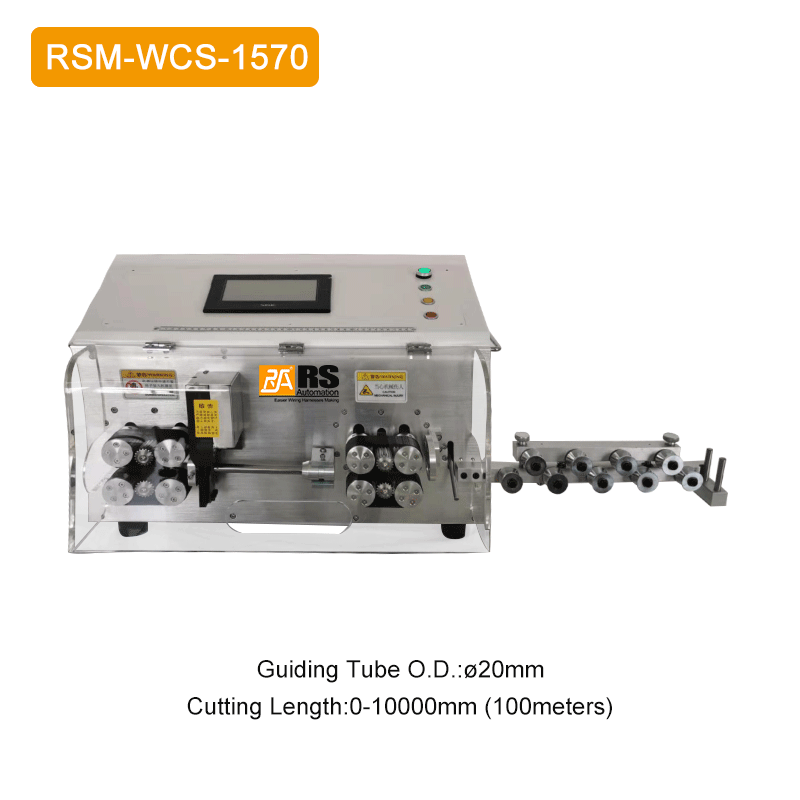

Wire Cutting & Stripping Machine (Air Free) RSM-WCS-1570

Description

Feature

Adopt to 12 wheel drive, with strong power and high precision which ensured no damage to the wire surface.
The feeding wheel and releasing wheel can be directly set，saving time and labor.
The feeding wheel with automatic lifting function which increased the strip length
Adopt HMI operation interface，the parameters are visualized and easy to understand.
With three-layer stripping program, it can be stripped into three layers.
100 group programs can be stored, different parameters can be stored，easy operation
Separate jigs, slitting jigs，ink-jet machines can be added

Specification

Model	RSM-WCS-1570
Display Way	7 Inch HMI
Applicable Wire	1.5mm²-70mm²
Guiding Tube O.D.	Φ20mm
Stripping Length	Front end 0-320mm (Beyond 400mm, added splitting jigs can be unlimtied spil) Rear end 0-150mm
Cutting Length	0-10000mm (100meters)
Min. Residual Length	50mm
Cutting Tolerance	±0.002mm*L（L=cutting length）
Memory Function	Max. 200 groups
Drive Way	12 wheels
Blade Material	Imported high speed steel
Voltage	220V/50HZ
Power	800W
Weight	80Kg
Productivity	1500-2500pcs/h (Depending on the wire)
Dimension	L700mmW640mmH480mm
