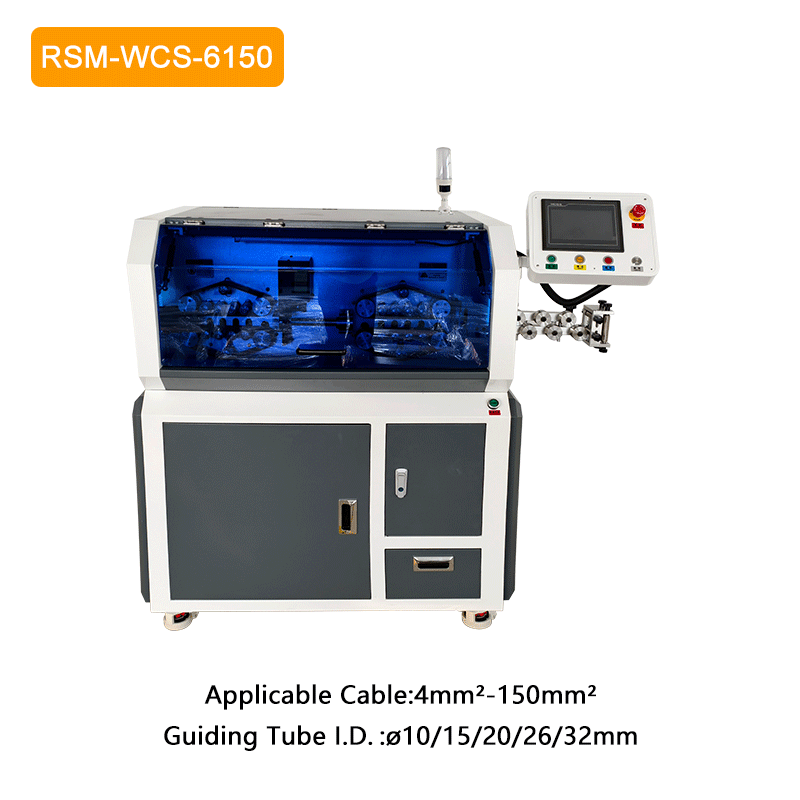

Large Cable Cutting & Stripping Machine(Full Motor Driven) RSM-WCS-6150

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Adopt 14 wheel drive with servo motor drive, which provides high precision, strong power and ensures no damage to the wire surface.
  • The feeding wheel and releasing wheel can be directly set，saving time and labor.
  • The feeding wheel with automatic lifting function which increased the strip length
  • Adopt HMI operation interface，the parameters are visualized and easy to understand.
  • With three-layer stripping program, it can be stripped into three layers,the productivity is 2 -3 times than the original machine.
  • 200 group programs can be stored, different parameters can be stored，easy operation
  • Separate jigs, slitting jigs，ink-jet machines can be added
Specification
Model RSE-WCS-6150
Display Way 7 Inch HMI
Applicable Wire 4mm2-150mm2
Guiding Tube O.D. ø10/15/20/26/32mm
Cutting Length 0-999000mm
Cutting Tolerance ±0.002mm*L (L=cutting length)
Stripping Length Front end 0-500mm,Rear end 0-250mm(Max. 3 layer stripping)
Residual Insulation Length Min. 70mm
Memory Function Max.200 groups
Blade Material High speed steel
Productivity 600-1000pcs/hour (depends on the wire)
Power
 1500W
Voltage 220V
Weight
270KG
Dimension
 L1080mm*W650mm*H1200mm

PDF Specification Download
RSM-WCS-6150.Pdf
Video
RSM-WCS-6150.Mp4
