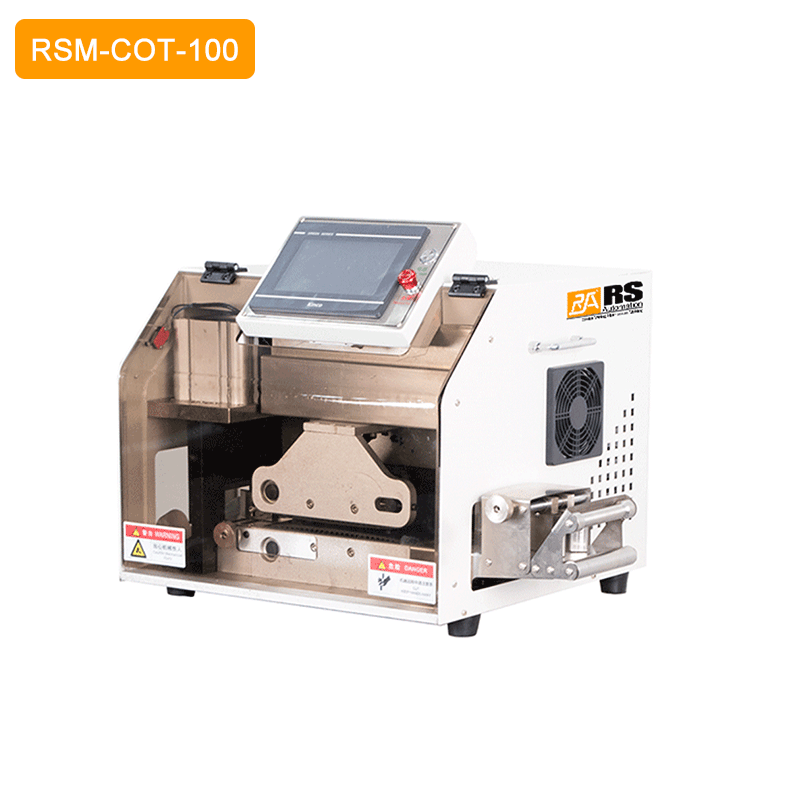

Corrugated Tube Cutting Station RSE-COT-100

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Touch‑screen setting for cutting length & production quantity, automatic counting, auto‑stop upon completion of set quantity.
  • Servo‑driven feeding, stable cutting dimension with minimal tolerance.
  • Transparent safety protective cover for visual observation of internal cutting process.
  • Benchtop integrated unit, small footprint, plug‑and‑play operation.
Specification
Model RSE-COT-100
Control System
 PLC + HMI
Cut Off Way Cylinder cut off
Stroke
 50mm
Voltage 220V 50-60Hz
Power 200W
Tube O.D. Φ1-Φ30mm
Accuracy Length Cutting length ±0.5+L*0.002mm
Cutting Speed 10-60pcs/min (Depnds on the cutting length)
Dimension 570mm*490mm*460mm
Weight 70Kg
Cutting Width
 80 mm

PDF Specification Download
RSE-COT-100.Pdf
