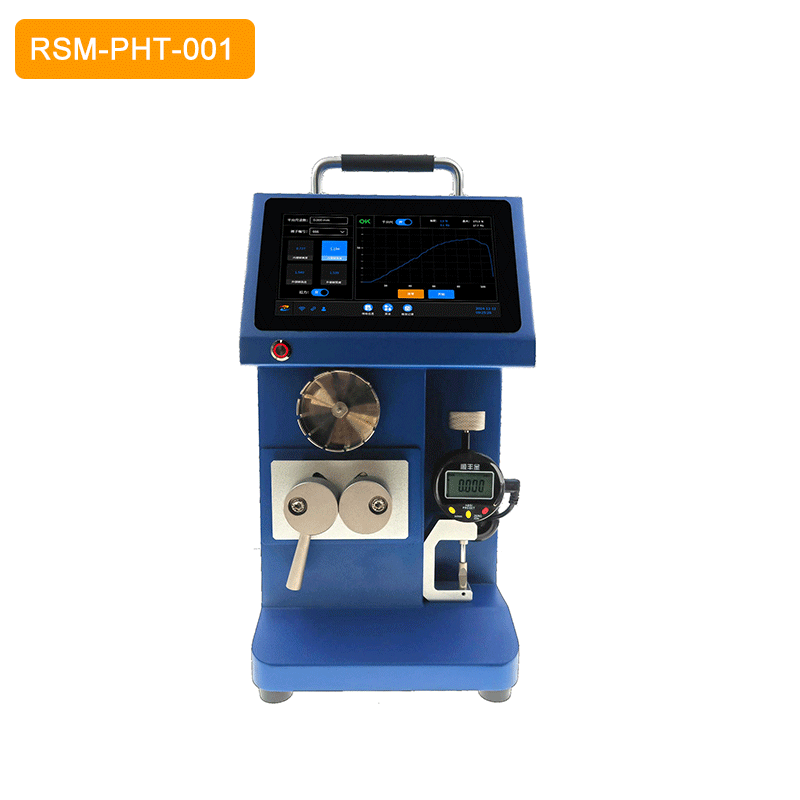

Tensile height tester RSM-PHT-001

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Professional testing instrument dedicated to terminal pull-out force testing
  • Simultaneously measures multiple parameters including terminal pull force, height and width
  • Supports initial inspection and routine patrol inspection for effective quality control
  • User-friendly operation with one-click testing function
  • Automatically judges test results without manual judgment
  • Automatically stores all test data for full data traceability
  • Automatically generates standardized test reports
  • Equipped with code scanning and device networking functions
  • Capable of direct connection to factory MES (Manufacturing Execution System)

Specification
Model RSM-PHT-001
Display 7-inch screen
Pull Range 200 kg
Height Accuracy 0.001MM
Pulling Speed 0.1 g
Power AC 220V
Communication Interfaces USB, Wi-Fi, Ethernet
Easy Operation User-friendly operation, automatic data recording and graphic display
Supports MES connection
 Test data can be uploaded to factory MES, and test tasks distributed
by MES can be received.
Equipment Connection
 Compatible with automatic and semi-automatic terminal crimping machines to perform initial and routine inspections. Products can be released only after passing inspection for guaranteed product quality.
Barcode Scanner Compatible
 Facilitates incoming material quality management on production lines
Dimensions
 W242mm×H393mm×L151mm


PDF Specification Download
 Video
