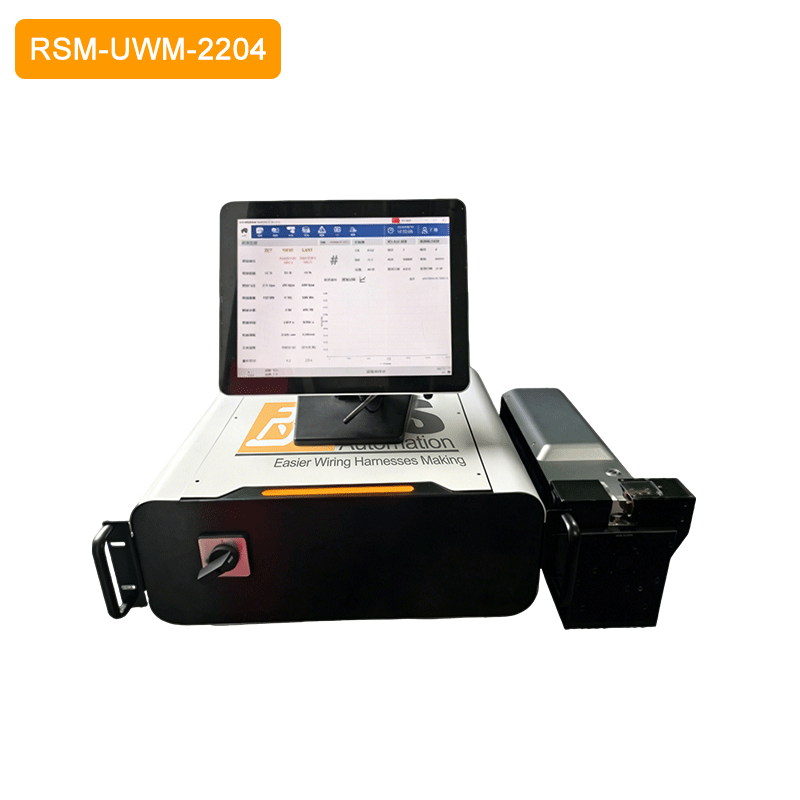

Ultrasonic Welding Machine RSM-UWM-2204

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Delivers robust power output and consistent sustained performance
  • System automatically generates corresponding welding parameters based on input wire specification recipe
  • User-friendly HMI & intuitive recipe interface for enhanced visibility and operability.
  • Built-in preset welding parameters for regular wire sizes reduce commissioning duration significantly.
  • Supports mistake-proofing to prevent misloading; enables sequential welding and in-line welding.
  • Welding data is automatically saved, traceable, and supports MES system networking.
Specification
Model RSM-UWM-2204
Cross-section Range 0.35~25mm²
Power 4KW
Frequency 20KHz
Voltage 220VAC
Working Air Supply Clean & dry compressed air, 80 psig (5.5 bar)
Operating Temperature
 5~50℃
Operating Humidity 30%~90%
Weight 25KG
Dimension
 L550mm*W200mm*H200mm

PDF Specification Download
RSM-UWM-2204.pdf
Video
RSM-UWM-2204.Mp4
RSM-UWM-2204(1).Mp4
RSM-UWM-2204(2).Mp4
