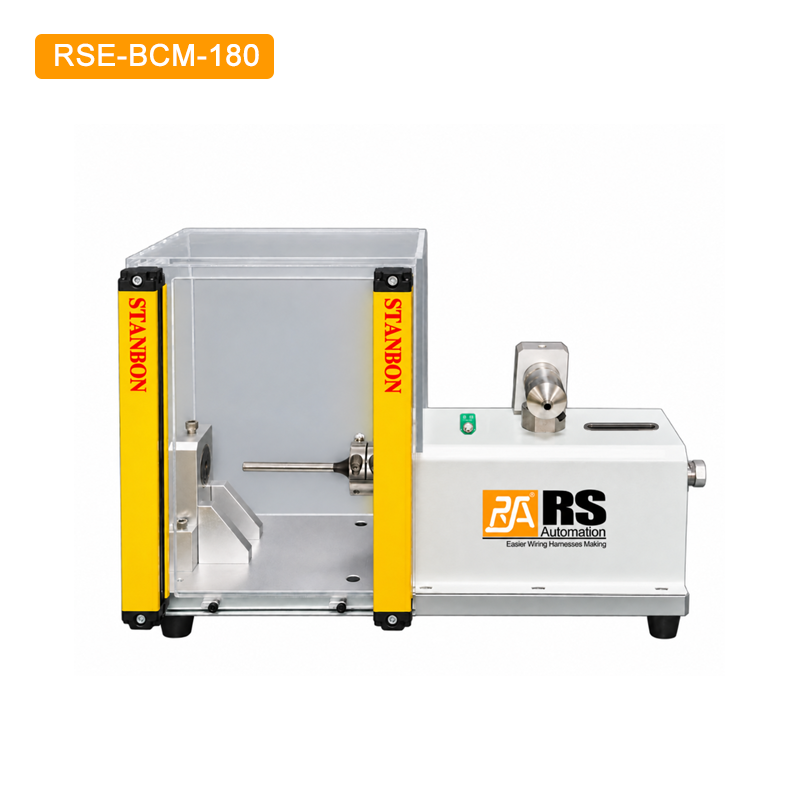

Braid Cutting Machine RSE-BCM-180

0.00
0.00
Quantity:
(Inventory: 1000)
Buy now
Add to cart

Description
Feature
  • Compatible with various coaxial cables, multi-core sheathed wires.
  • Full visibility of all working zones.
  • Only replace matching cutting inserts and guides when changing cables.
  • Full cut of braid shield; shield reserve length adjustable.
  • Optional shield-flipping module for damage-free braid turnover.
  • Foot pedal start; push-button version optional.
  • Air supply only, no power required for safer operation.

Specification
Model RSE-BCM-180
Cable O.D.
 3-15mm
Braid Cutting Length 10-180mm
Control Way Pneumatic
Trigger Mode Manual button
Weight About 8KG
Dimension
 L410mm×W145mm×H155mm

PDF Specification Download
RSE-BCM-180.Pdf
Video

RSE-BCM-180.Mp4
RSE-BCM-180(1).Mp4
RSE-BCM-180(2).Mp4
